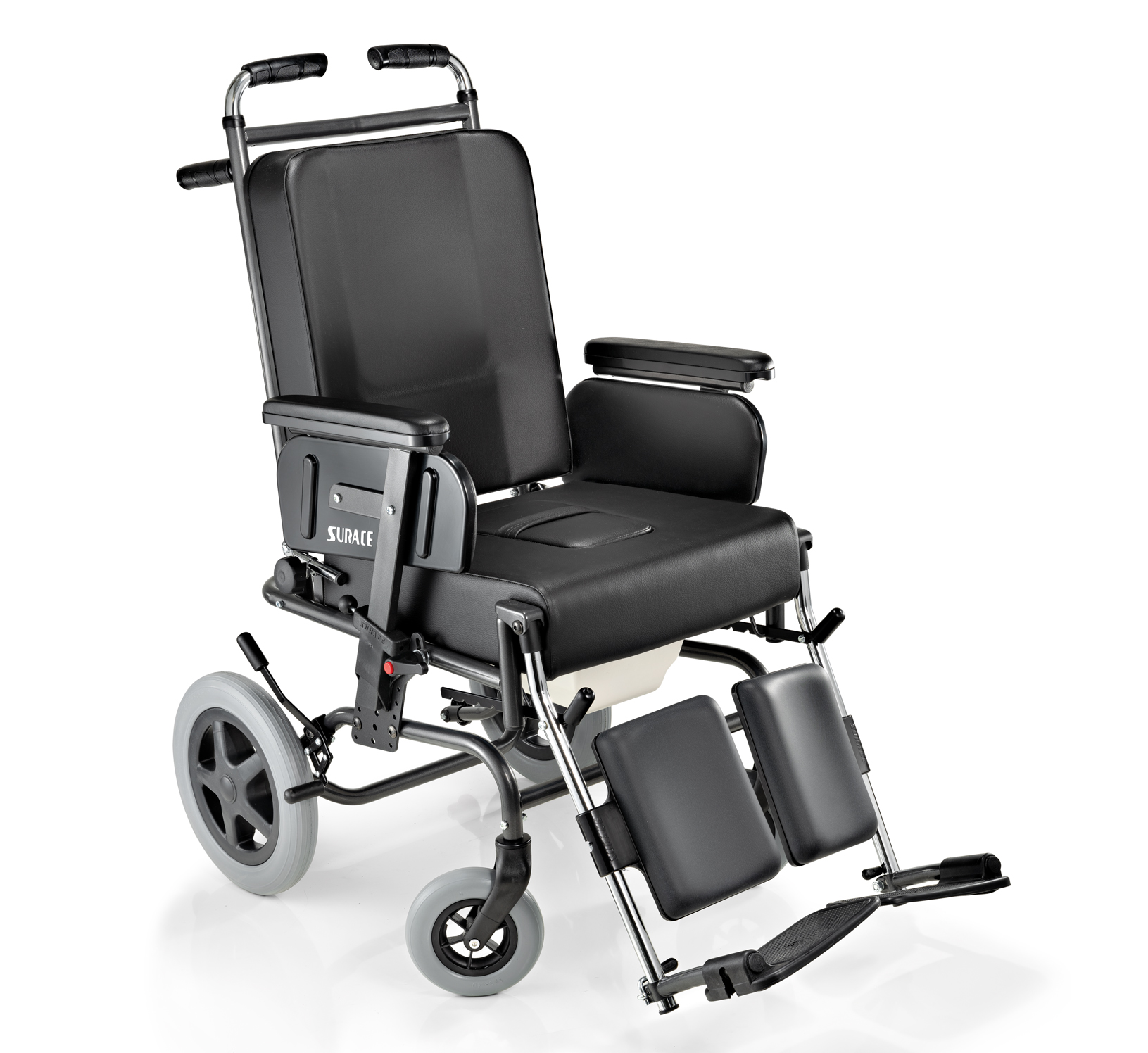

588 Articulated armchair

588

Standard
  • Super anatomical padding.
  • Manual pivoting and adjustable in height seatrest.
  • Reclining backrest.
  • Fireretardant padding and upholsteries.
  • Padded, adjustable in height and removable sides.
  • Adjustable in height and swinging legrests, with integral anatomical padding.
  • Height adjustable footrests.
  • Adjustable in height and slant push handles.
  • Easily cleanable WC.
  • Anti-overturn small wheels.
Optional
  • Headrest.
  • Trunk supports.
  • Thigh divider.
  • Contoured table.
  • Security belt.
  • Y belt.

Download
Technical data

Specifications

588
Measurements are approximate and subject to change recommended by the best state of the art.
OUR WHEELCHAIRS HAVE AS STANDARD FEATURES:

For safety and reliability:
  • Non-­toxic, physiologically safe, polyester-­based polyurethane foam padding.
  • Self-­extinguishing upholstery, in accordance with FIAT and ISO standards.
  • Double layer chrome plating
    (up to 50 micron thick) against wear.
  • Spring, rack or gas piston adjustable legrests.
  • Shock-­proof specially rounded and contoured footrests.
  • Nylon container guides and frame protections against the damage caused by urine.
  • Multiple layer, pierce-­proof
    (12-15 mm thick) wooden seats.
  • Double ball bearings on front and rear wheels.
  • Indestructible, maintenance-­free 12 spoke integral large wheels.

N.B.: All the parts of our wheelchairs
are specifically designed without
sharp edges or corners which can
create an hazard when moving
the patient.



For comfort:
  • High-density, squash-proof
    (40-60 g/litre), printed and cast padding, in accordance with Surace specifications.
  • Adjustable seat width.
  • Integral, anatomical, side turning legrest cushions with ABS counter frame.
  • Continuous position reclining backrests with a special original Surace quick tipping system.
  • Original Surace designed nylon integral side clothes guards.
  • Unique pattern fabrics.
  • Perfect trimming with nylon and ABS plastic components (backrest panel, armrest panels, legrest cushion panels).
  • Easy cleanable WC.

588 Articolata basculante


Sedia a rotelle con sedile basculante manualmente e regolabile in altezza.

Standard
  • Super imbottiture anatomiche.
  • Seduta basculante manualmente e regolabile in altezza.
  • Schienale reclinabile.
  • Tessuti e imbottiture ignifughi.
  • Fianchi imbottiti, regolabili in altezza ed estraibili.
  • Appoggiagambe anatomici integrali, regolabili in altezza e girevoli lateralmente.
  • Pedane regolabili in altezza.
  • Manici di spinta regolabili in altezza ed inclinazione.
  • Wc igienizzabile.
  • Ruote antiribaltamento.
Optional
  • Appoggiatesta.
  • Cuscinetti per il tronco.
  • Cuneo divaricatore.
  • Tavolino sagomato.
  • Cintura di sicurezza.
  • Cintura a bretellaggio.

Classificazioni

  • ISO Class 12.21.03.006+12.24.21.103+12.24.06.118+12.24.06.127
  • Codice LEA 12.22.18.009

588 Articulada y basculante


Estándar
  • Tapicería mullida y anatómica
  • Tejidos y material de relleno ignífugos
  • Respaldo adjustable
  • Asiento de oscilación manual y altura adjustable
  • Cojines posapiernas anatómicos integrales, giratorios lateralmente y de altura regulable
  • Brazos con lados almohadillados, amovibles y de altura adjustable
  • Frenos
  • Inodoro higienizable
  • Ruedas antivuelco
Opcional
  • Cojines para el busto
  • Extensión
  • Mesita
  • Cinturón de seguridad

588 Fauteuil articulé basculant


Standard
  • Rembourrages super anatomiques
  • Revêtements et rembourrages ignifuges
  • Dossier réglable. Siège basculant manuellement et réglable en hauteur
  • Coussins appui-jambes anatomiques, tournants latéralement et réglables en hauteur
  • Accoudoirs avec cotés rembourrés, amovibles et réglables en hauteur
  • Freins
  • W.C. hygiénique
  • Roues contre renversement
Optionnel
  • Petits coussins pour le tronc
  • Appui-tête
  • Petite table
  • Ceinture de sûreté

588 Rollstuhl mit Sitzneigung und zahlreichen Einstellungs- möglichkeiten


Standard
  • Anatomische Superpolsterung
  • Feuerbeständige Polsterung und Stoffe
  • Verstellbare Rückenlehne
  • Höhenverstellbare Sitzfläche mit manuell verstellbarer Neigung
  • Anatomisch geformte Kissen für Beinstützen, seitlich schwenkbar und höhenverstellbar
  • Armlehnen mit gepolsterten, abnehmbaren und höhenverstellbaren Seitenteilen
  • Bremsen
  • Hygiene-WC
  • Kippschutzräder
Auf Anfrage
  • Kissen für den Rumpf
  • Verlängerung
  • Tisch. Sicherheitsgurt
