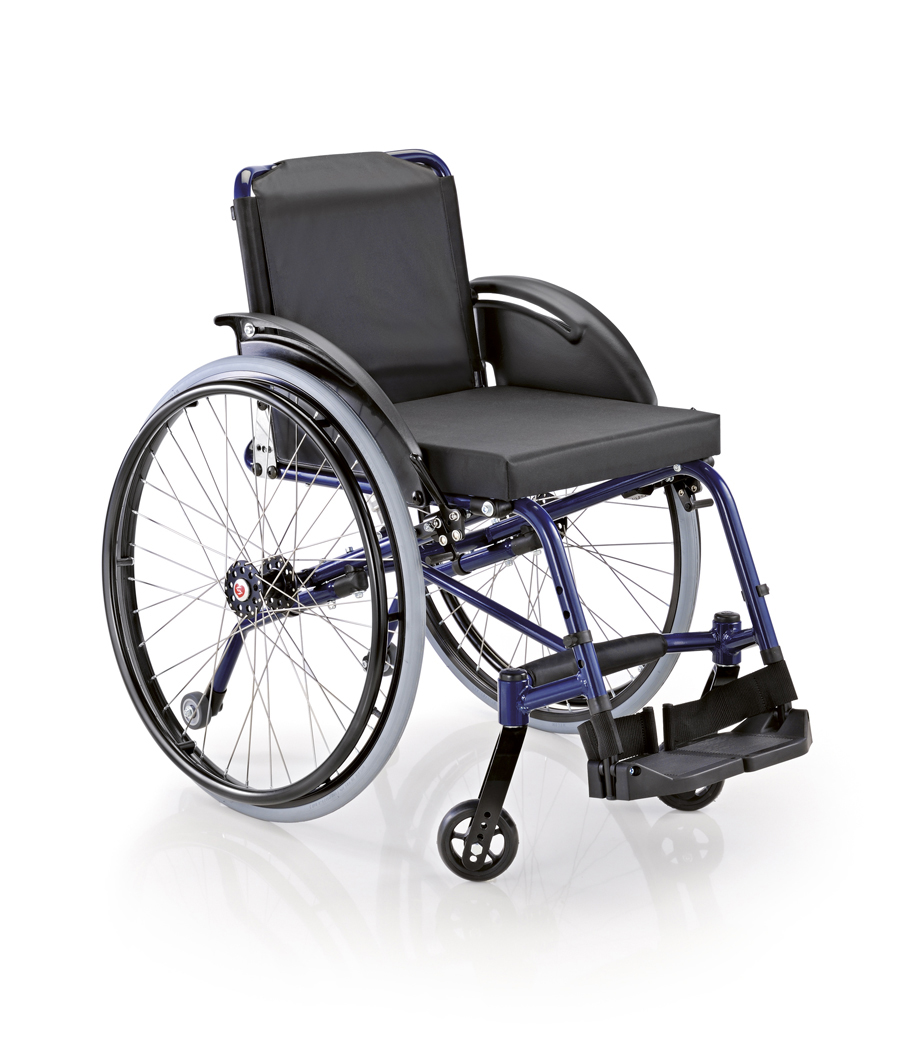

WINNER 10,5 KG Ultra light, sport chair

Standard

Aluminium frame and special materials.
Quick release big wheels with 3° camber.
Height adjustable, reclining padded seat from 0° to -10° with millimetric continuous screw.
Reclining backrest from -7° to +7° which can be collapsed on seat.
Folding side clothes guards.
Adjustable and removable footrests.
Anti-overturn small wheels.

Optional

Download
Technical data

Specifications

WINNER 10,5 KG

Measurements are approximate and subject to change recommended by the best state of the art.

OUR WHEELCHAIRS HAVE AS STANDARD FEATURES:

For safety and reliability:

Fireproof, ultra-resistant
polyester upholstery
(resistance to traction 600-800 N).
Double layer chrome plating
(up to 50 micron thick) against wear.
Cross with self-lubricating nylon bushing joints (Surace patent-pending) sliding on four telescopic rods.
Specially rounded and contoured footrests.
Double ball bearings on front and rear wheels.
Indestructible, maintenance-free 12 spoke integral large wheels.
Aluminium forks and double ball bearings for 200 mm diameter wheels.

N.B.: All the parts of our wheelchairs
are specifically designed without
sharp edges or corners which can
create an hazard when moving
the patient.

For comfort:

Turning and lockable footrests with a quick release function which can be operated with the shin.
Independent footrest heel supports.
Backrest upholstery arranged for fitting seat belts and lower fabric clothes protecting flap.
Original Surace designed nylon integral side clothes guards.
Tipping or extractable armrests with quick release system and safety lock feature.
Unique pattern fabrics.
Perfect trimming with nylon and ABS plastic components.
Seamless upholsteries not in contact with skin’s user.
Extreme lightness and easiness of folding.

WINNER 10,5 KG Sedia sportiva ultraleggera in alluminio riducibile

Carrozzina per disabili ultraleggera con sedile imbottito regolabile in altezza ed inclinazione.

Standard

Ruote estrazione rapida con campanatura di 3°
Sedile imbottito regolabile in altezza ed inclinazione da 0° a - 10° con vite continua millimetrica
Schienale regolabile in inclinazione da -7° a +7° e ribaltabile sul sedile
Fianchetti paravesti abbattibili
Pedane regolabili ed estraibili
Ruote antiribaltamento

Optional:

Classificazioni

Estándar

Bastidor rígido en aluminio
Ruedas de extracción rápida con inclinación hacia el interior de 3°
Asiento rígido acolchado, ajustable en altura e inclinación de forma continua (de 0° a –10°)
Respaldo de inclinación ajustable (de –7° a +7°) y abatible sobre el asiento
Costados para protección ropa abatibles
Reposapiés único ajustable y amovible
Revestimiento para respaldo acolchado y amovible
Ruedas antivuelco

Standard

Châssis rigide en aluminium
Roues à extraction rapide avec carrossage de 3°
Siège rigide rembourré à hauteur et inclinaison réglables de façon continue (de 0° à -10°)
Dossier à inclinaison réglable (de –7° à +7°) et rabattable sur le siège
Ailettes latérales cachevêtements amovibles
Un repose-pied réglable et amovible
Revêtement du dossier doublé que l’on peut enlever
Petites roues contre renversement

Standard

Aluminiumrahmen
Räder mit Schnell- Abnehmvorrichtung und Radsturz dritten Grades
Harte Sitzfläche, gepolstert und höhenverstellbar, mit stufenlos verstellbarer Neigung (0º-10º)
Die Rückenlehne kann auf die Sitzfläche herunter geklappt werden, und ist ebenfalls in der Neigung verstellbar (von -7º bis +7º)
Einstellbare Seitenklappen
Ausziehbare und verstellbare einteilige Fußstütze
Gepolsterter, abnehmbarer Lehnenbezug
Abnehmbare kleine gegen Umkippen- Räder
